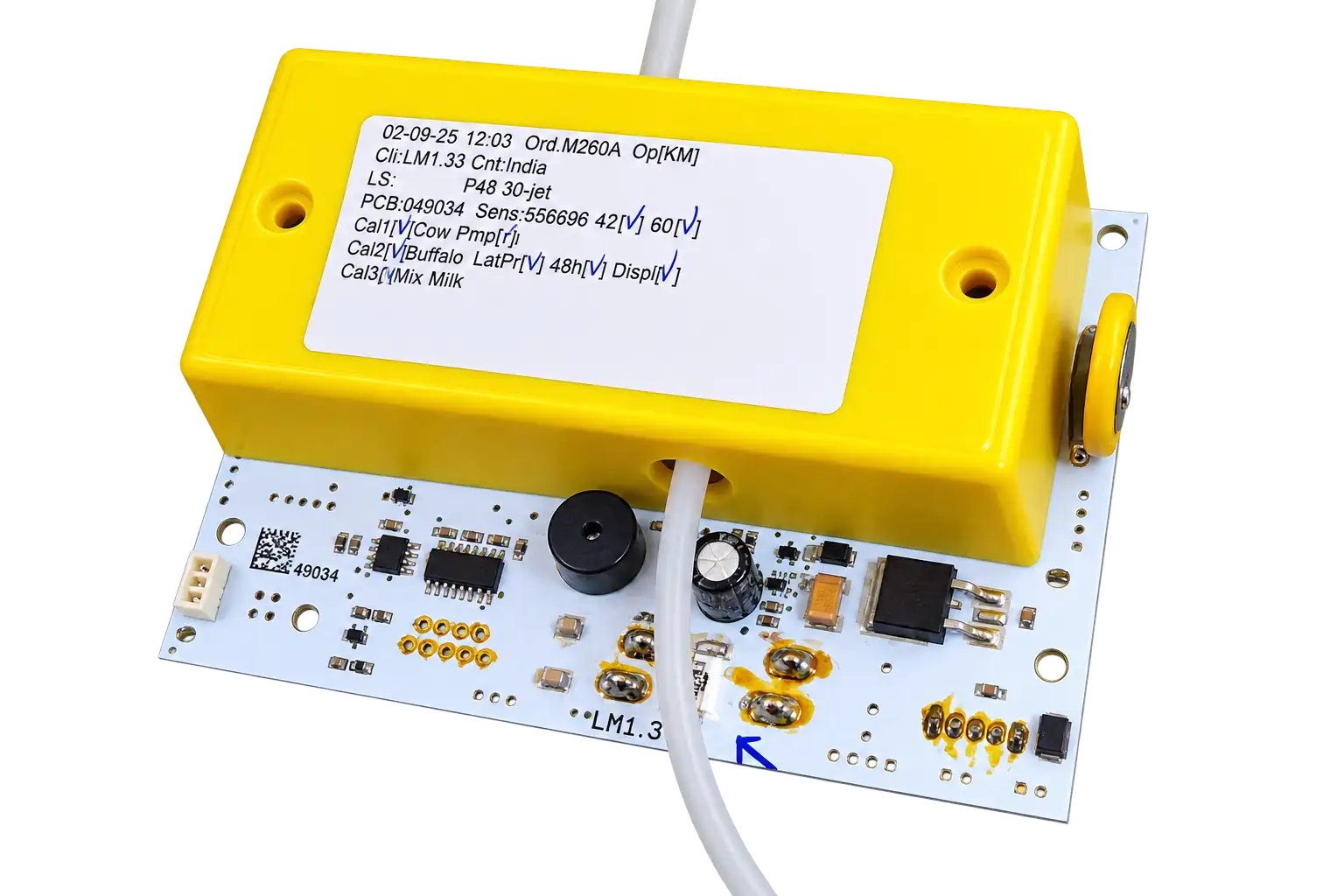

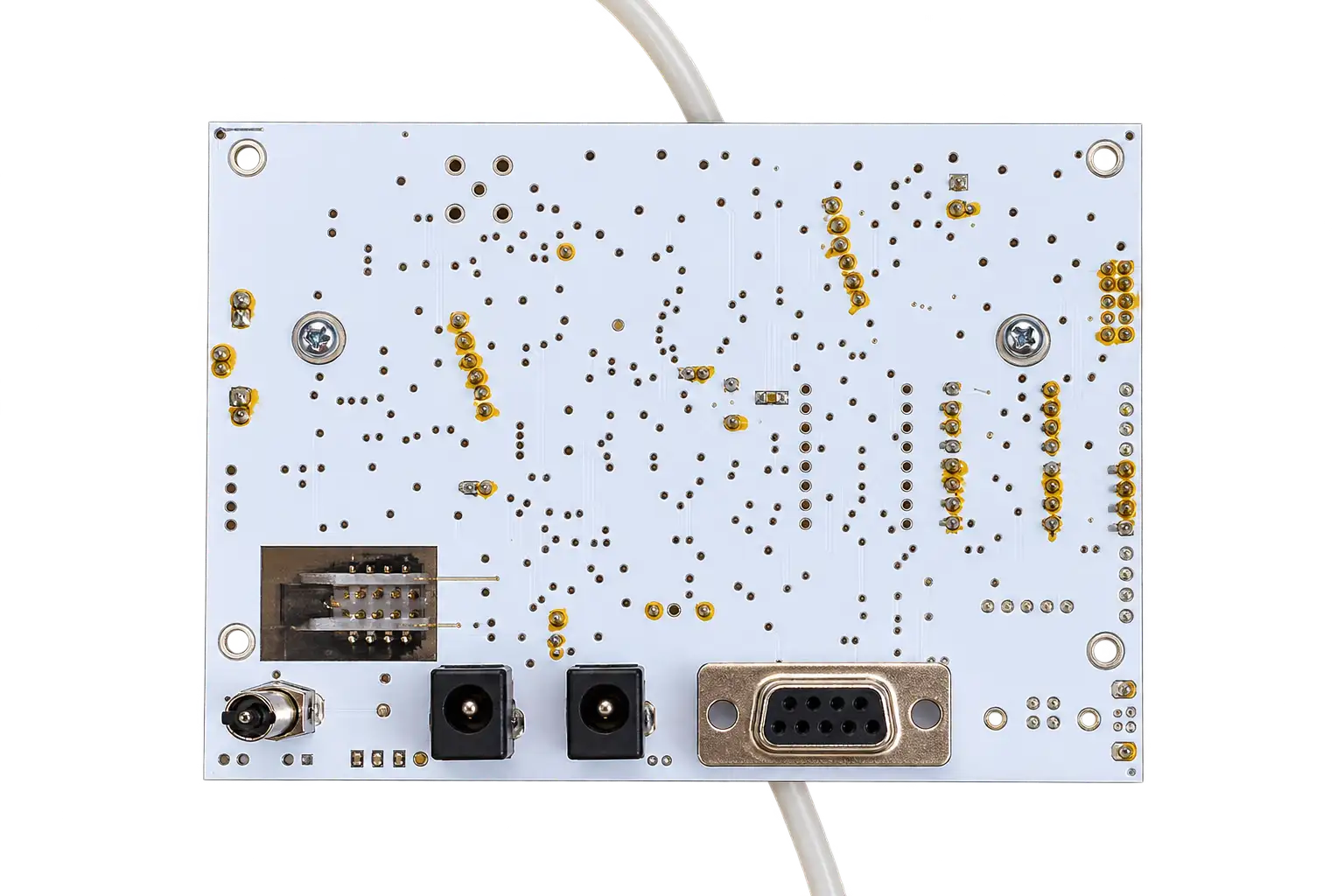

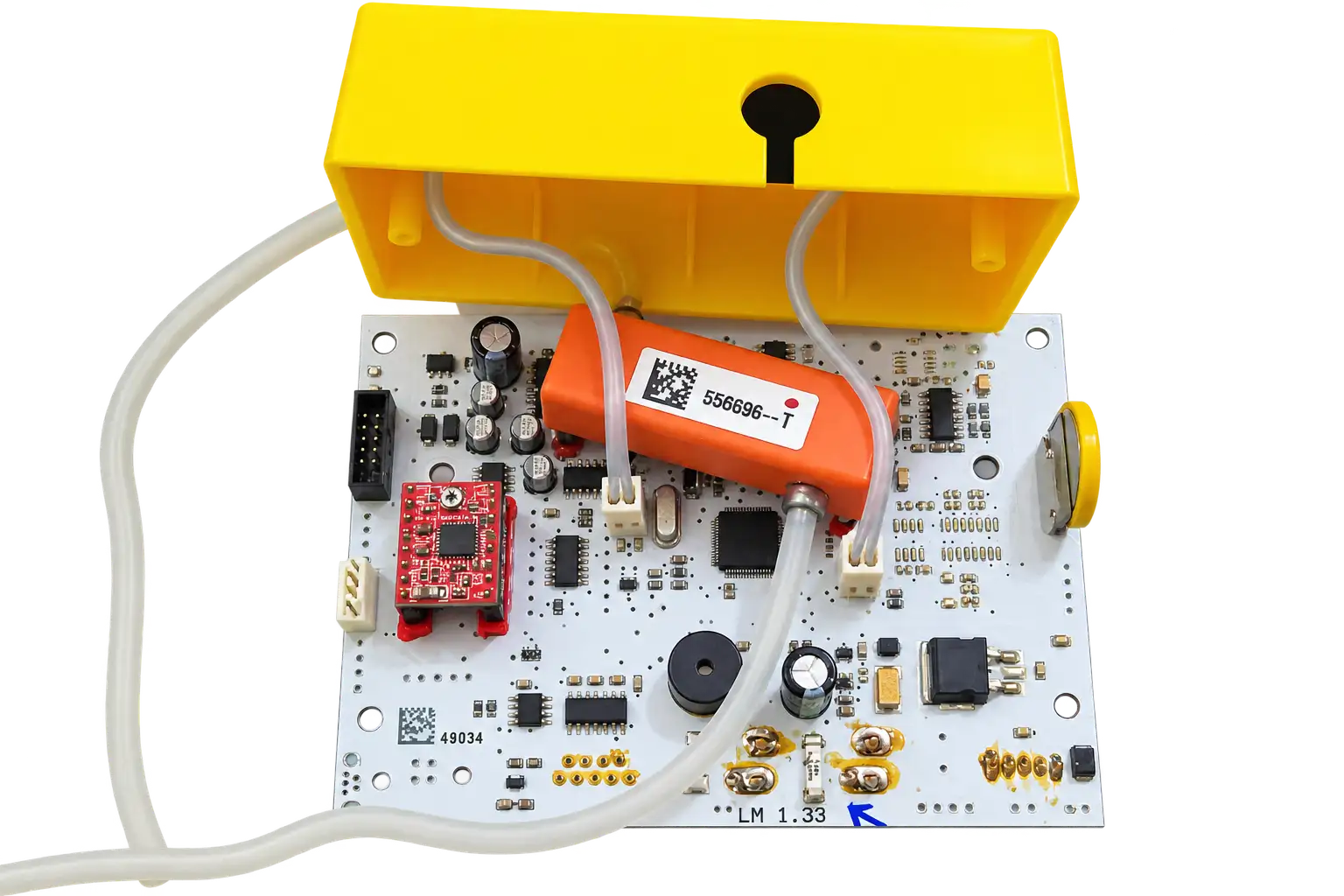

Lactoscan Milk Analyzer PCB is an original Made in Bulgaria precision sensor and circuit board assembly for Lactoscan milk analyzers, designed for accurate and stable FAT, SNF, density, protein and lactose measurement.
Advanced microcontroller-based circuit board designed for precise and reliable milk analysis, ensuring accurate measurement of Fat, SNF, Density, Added Water and Protein content.
View ProductLactoscan Milk Analyzer PCB is an original precision sensor and PCB assembly designed for Lactoscan milk analyzers, supporting accurate and stable multi-parameter milk analysis.
The PCB uses ultrasonic wave propagation with digital signal processing to measure FAT, SNF, Density, Protein, Added Water, Lactose, Milk Sample Temperature, Freezing Point and Salts.
Built with industrial-grade components in a compact, integrated design, this PCB is suitable for most Lactoscan milk analyzers used in dairy and laboratory applications.
| FAT | 0.01% to 25% (Accuracy ±0.06%) |
| Solids-Non-Fat (SNF) | 3% to 15% (Accuracy ±0.15%) |
| Density | 1015 to 1040 kg/m³ (Accuracy ±0.3 kg/m³) |
| Protein | 2% to 7% (Accuracy ±0.15%) |
| Lactose | 0.01% to 6% (Accuracy ±0.2%) |
| Added Water | 0% to 70% (Accuracy ±3) |
| Milk Sample Temperature | 1°C to 40°C (Accuracy ±1%) |
| Freezing Point | -0.4°C to -0.7°C (Accuracy ±0.001%) |
| Salts | 0.4% to 1.5% (Accuracy ±0.05%) |
| Product Type | Lactoscan Milk Analyzer PCB |
| Origin | Made in Bulgaria |
| Technology | Ultrasonic Wave Propagation with Digital Signal Processing |
| Supported Milk Types | Cow, Buffalo, Mixed Milk |
| Measured Parameters | FAT, SNF, Density, Protein, Added Water, Lactose, Milk Temperature, Freezing Point, Salts |
| Operating Voltage | 12V DC ±10% |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Interface/Connectivity | Serial UART / RS232 (Custom on Request) |
| Mounting | PCB Mount / Enclosure Mount |
| Design/Construction | Compact Integrated Design, Industrial Grade Components |
| Compatibility | Suitable for Most Lactoscan Milk Analyzers |
Yes. This is an original Lactoscan Milk Analyzer PCB, Made in Bulgaria.
The supplied specification lists this PCB as suitable for most Lactoscan milk analyzers.
It supports FAT, SNF, Density, Protein, Added Water, Lactose, Milk Sample Temperature, Freezing Point and Salts.
The supplied technical data lists Cow Milk, Buffalo Milk and Mixed Milk.
The specified operating voltage is 12V DC ±10%.
Yes. It supports Serial UART / RS232 connectivity, with custom interfaces available on request.
The specified operating temperature range is 0°C to +50°C, with a storage range of -20°C to +70°C.
Use the Send Enquiry option to request the latest price and availability from KTPL Instruments.
Contact KTPL Instruments for the current Lactoscan Milk Analyzer PCB configuration, quotation, accessories and delivery details in India.
