KTPL Digital Ultrasonic Milk Stirrer is a precise sample preparation unit with digital timer and frequency control, designed for uniform milk mixing and removal of air bubbles for accurate milk analysis.
KTPL Ultrasonic Milk Stirrer (AC To DC) is a high-performance sample preparation unit designed for uniform milk mixing, removing air bubbles and improving the accuracy of FAT, SNF and other milk analysis parameters.

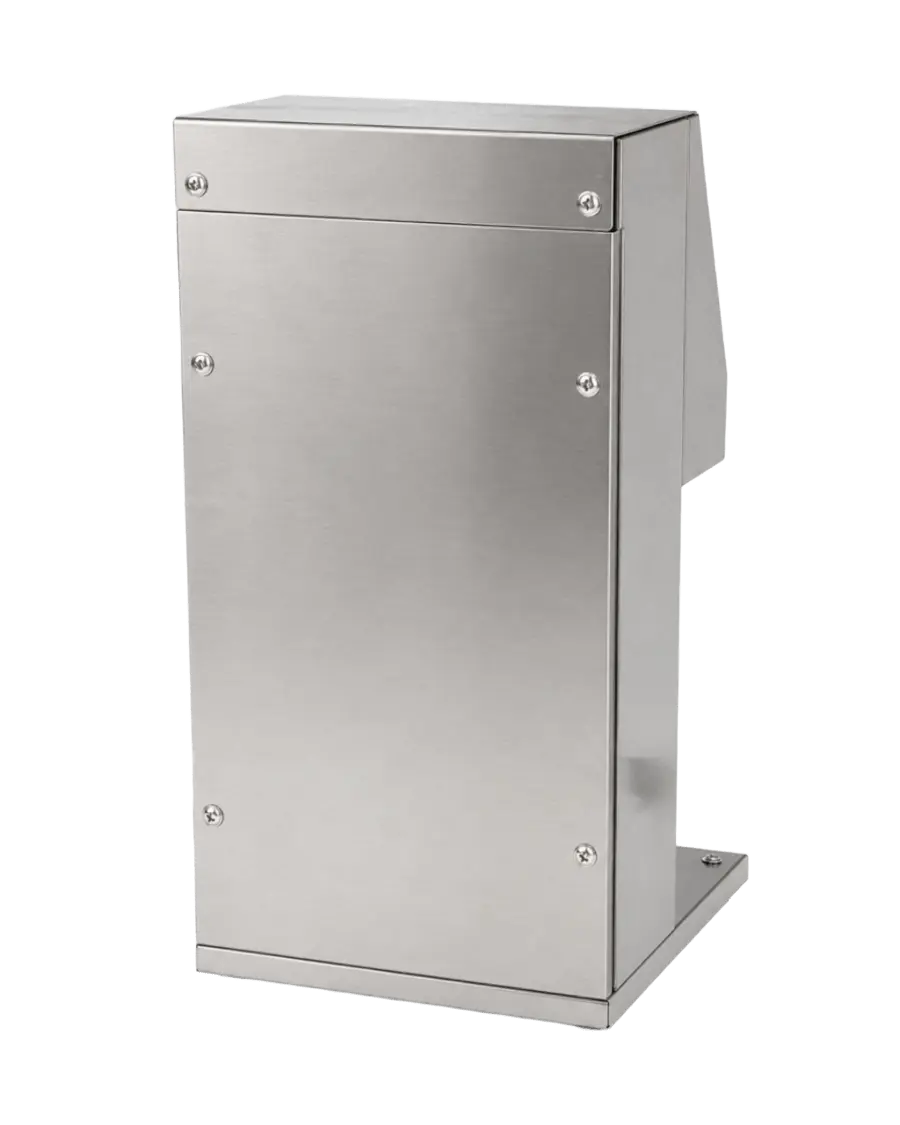

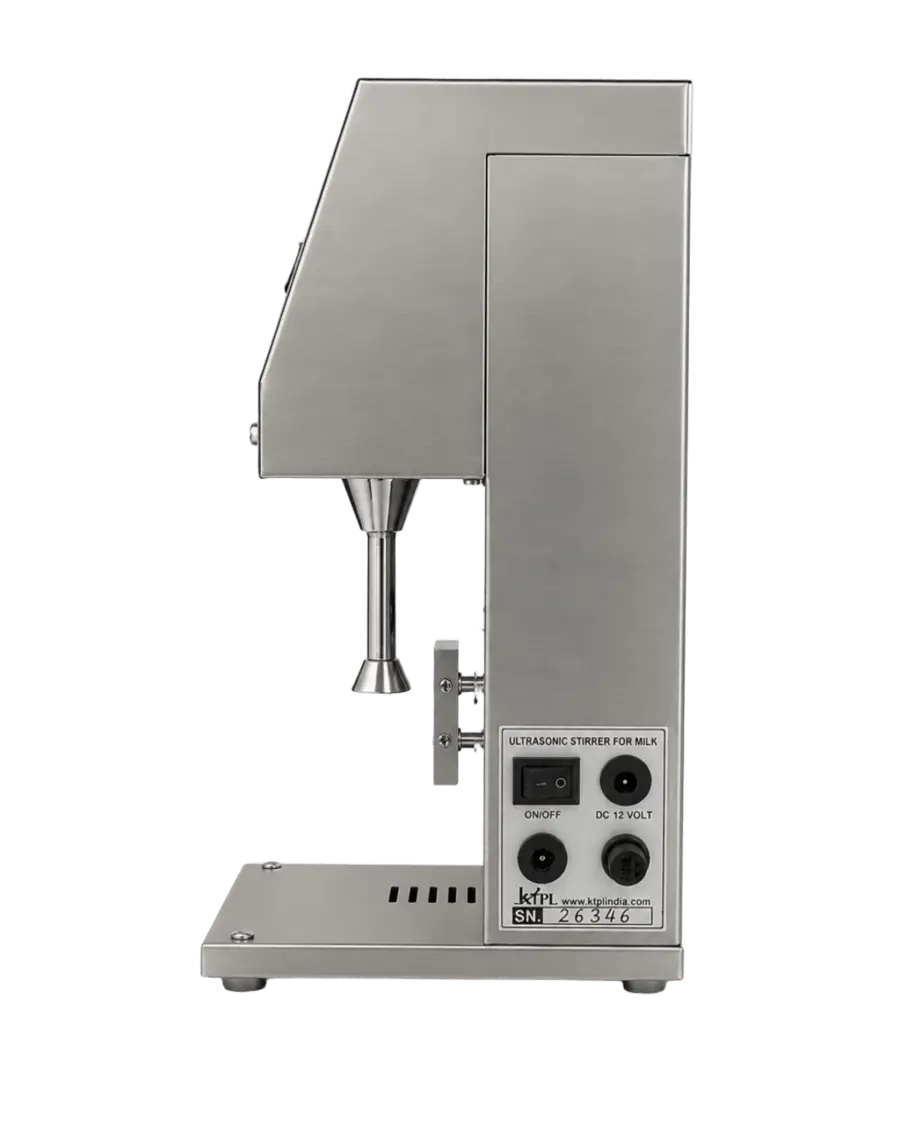

View ProductThe KTPL Digital Ultrasonic Milk Stirrer is an advanced sample preparation unit that features digital control for precise timer and frequency settings. It ensures uniform milk mixing and removes air bubbles, which are critical for accurate FAT and SNF analysis.
The unit is designed for use in milk collection centers, dairy processing plants, and testing laboratories. Its digital interface makes it easy for operators to set and adjust parameters for different milk types and sample viscosities.
It supports both AC and DC operation, with optional battery backup for uninterrupted performance. The compact design and low power consumption make it an ideal accessory for any milk analysis system.
| Frequency | 20 - 25 kHz |
| Voltage | 110 - 260V AC / 12V DC, 50/60 Hz |
| Power Consumption | 30W |
| Timer | Adjustable (Digital) |
| Stirrer Tool | Stainless Steel (Optional) |
| Body Material | Corten Steel |
| Weight | Approx. 2 kg |
| Battery Backup | Up to 8 Hours (42Ah Battery) |
| Relative Humidity | 30 - 80% RH |
| Operating Temperature | 10°C - 40°C |
| Fuse Protection | Yes (Protects PCB from High Voltage) |
| Frequency | 20 - 25 kHz |
| Voltage | 110 - 260V AC / 12V DC, 50/60 Hz |
| Power Consumption | 30W |
| Timer | Adjustable (Digital) |
| Stirrer Tool | Stainless Steel (Optional) |
| Body Material | Corten Steel |
| Weight | Approx. 2 kg |
| Battery Backup | Up to 8 Hours (42Ah Battery) |
| Relative Humidity | 30 - 80% RH |
| Operating Temperature | 10°C - 40°C |
| Fuse Protection | Yes (Protects PCB from High Voltage) |
The frequency range is 20 - 25 kHz, which is adjustable for different milk types.
Yes, this model features a precise digital timer control for accurate sample preparation.
Yes, it supports 110-260V AC and 12V DC operation with an optional battery backup.
The power consumption is only 30W, making it highly energy-efficient.
Yes, an optional 42Ah battery provides up to 8 hours of backup.
The body is made of Corten Steel for durability.
It is suitable for milk collection centers, dairy processing plants, testing laboratories, bulk milk coolers, and cooperative societies.
Use the Send Enquiry option to get the latest price and availability from KTPL Instruments.
Contact KTPL Instruments for the current Digital Ultrasonic Milk Stirrer configuration, quotation, accessories and delivery details in India.
