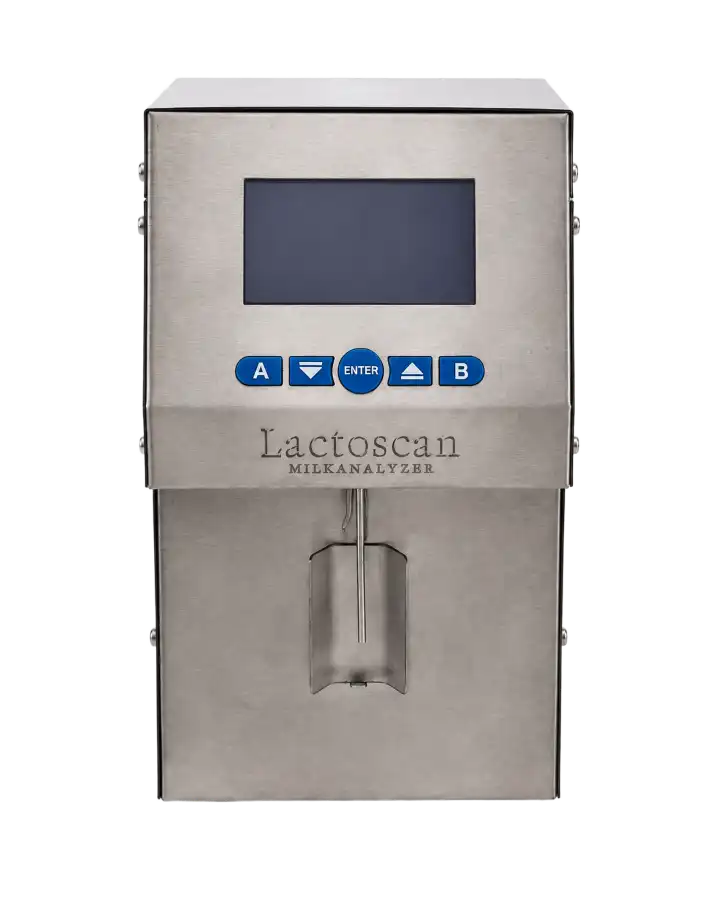

Original Lactoscan Milk Analyzer
Original Lactoscan Milk Analyzer View 1
Original Lactoscan Milk Analyzer View 2
Original Lactoscan Milk Analyzer View 3
Original Lactoscan Milk Analyzer View 4
Play Original Lactoscan Milk Analyzer video
SKU: LACT-SCN-001

Original Lactoscan Milk Analyzer

Portable Lactoscan Milk Testing Solution

Lactoscan is an original Assembled In India (All Parts Imported From Bulgaria) portable milk analyzer designed for fast and reliable multi-parameter milk testing in dairy collection centers, laboratories and quality-control operations.

Made in Bulgaria - Original Portable Milk Analyzer Multi-Parameter Testing RS232 Printer Support 20/30 Sec Analysis Stainless Steel Body

Related Products

Recommended Lactoscan Milk Analyzer 30 SEC SL-SS with pH & Conductivity

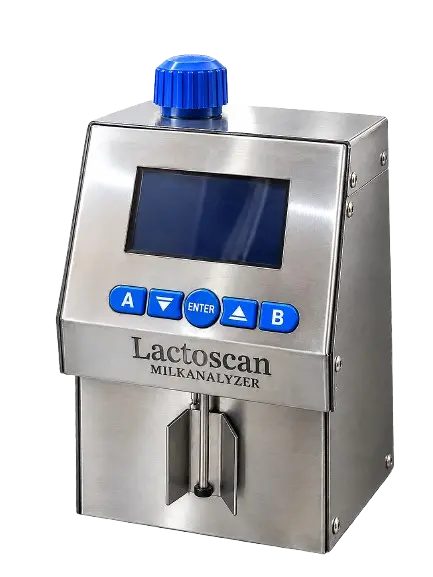

Lactoscan Milk Analyzer 30 SEC SL-SS with pH & Conductivity

Lactoscan Milk Analyzer 30 SEC SL-SS with pH & Conductivity is an original Made in Bulgaria ultrasonic milk analyzer that measures FAT, SNF, Density, Protein, Lactose, pH and Conductivity in a single 30-second test. Built with a hygienic stainless steel body and one-touch operation, it is designed for fast, accurate and reliable milk testing in dairy collection centers, laboratories and quality-control operations.

View Product

Product Overview

Lactoscan Milk Analyzer is a portable milk testing solution designed for fast, accurate and reliable milk analysis in dairy collection centers, milk testing laboratories and quality-control applications.

The analyzer measures FAT, Solids-Non-Fat (SNF), Density, Protein, Lactose, Added Water, Milk Sample Temperature, Freezing Point and Salts from a small milk sample.

The supplied configuration features an LCD display, RS232 printer support, 12V DC operation and a stainless steel body. The catalogue lists approximately 20-second and 30-second analysis configurations depending on the selected model/configuration.

Key Features & Benefits

  • Fast Analysis: Designed for rapid milk composition testing with approximately 20-second or 30-second analysis configurations.
  • Accurate Multi-Parameter Results: Measures important milk composition and quality parameters in one test.
  • Portable Design: Compact construction supports use in dairy collection and laboratory environments.
  • Easy Operation: LCD display and simple controls support convenient daily testing.
  • RS232 Printer Support: Supports connection to a compatible printer through RS232 output.
  • 12V DC Operation: Designed for 12V DC power operation.
  • Stainless Steel Body: Robust stainless steel construction for regular dairy use.
  • Assembled In India: The supplied KTPL catalogue identifies the Lactoscan unit as Assembled In India But All Parts Imported From Bulgaria.

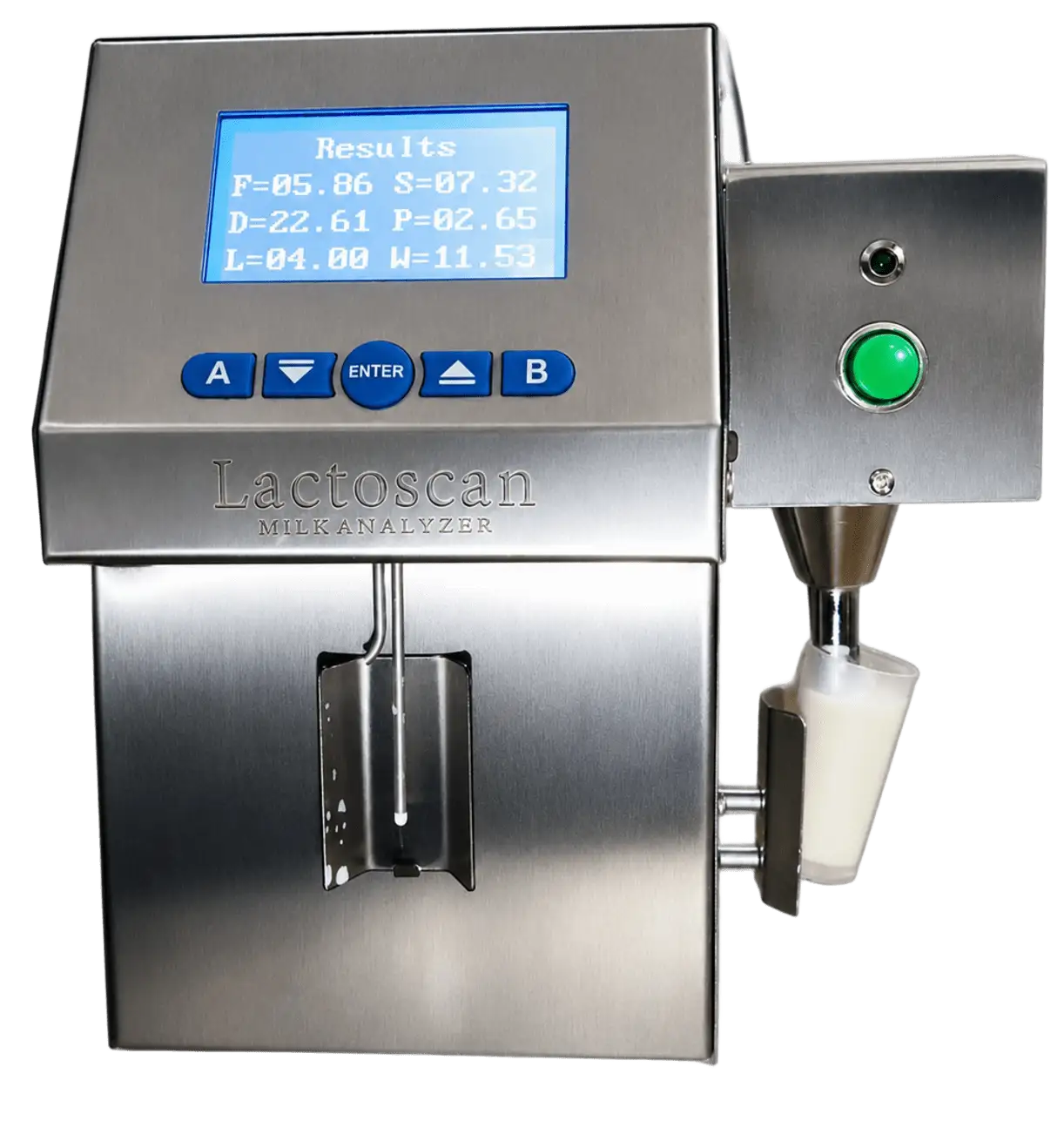

  • Optional Configurations: Side stirrer, battery-operated version (charger required) and thermal printer are listed as optional configurations.

Milk Testing Parameters

FAT0.01% - 25%
Solids-Non-Fat (SNF)3% - 15%
Density1015 - 1040 kg/m³
Protein2% - 7%
Lactose0.01% - 6%
Added Water0% - 70%
Milk Sample Temperature1°C - 40°C
Freezing Point-0.4°C to -0.7°C
Salts0.4% - 1.5%

Dimension, Weight & HSN Code

Dimension100 × 223 × 216 mm (W × L × H)
Weight4 kg
HSN Code9027

Technical Specifications

TechnologyUltrasonic Milk Analyzer
Analysis TimeApprox. 30 sec. / Approx. 20 sec. (depending on configuration)
Sample VolumeApprox. 20 ml
Power Supply12V DC
Power Consumption50W
DisplayGraphical Display

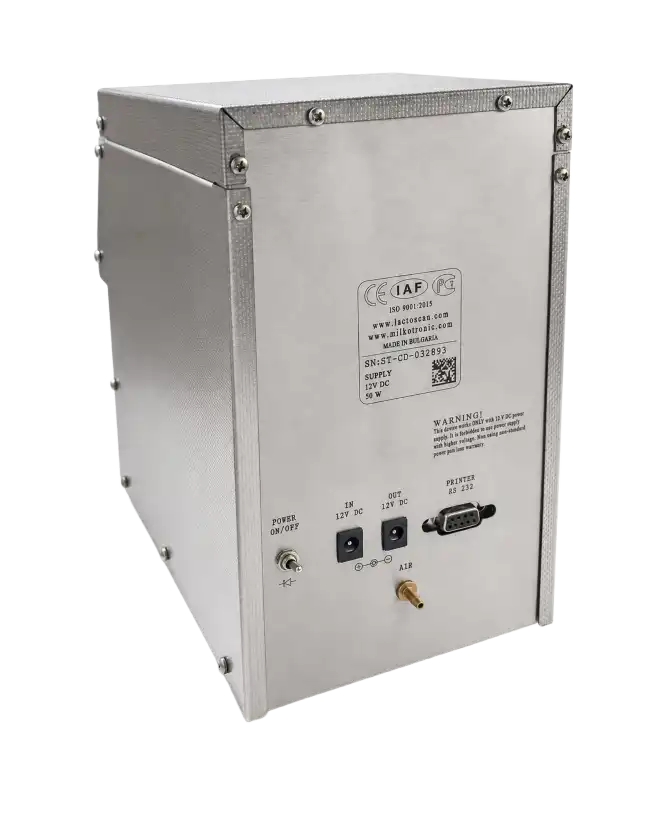

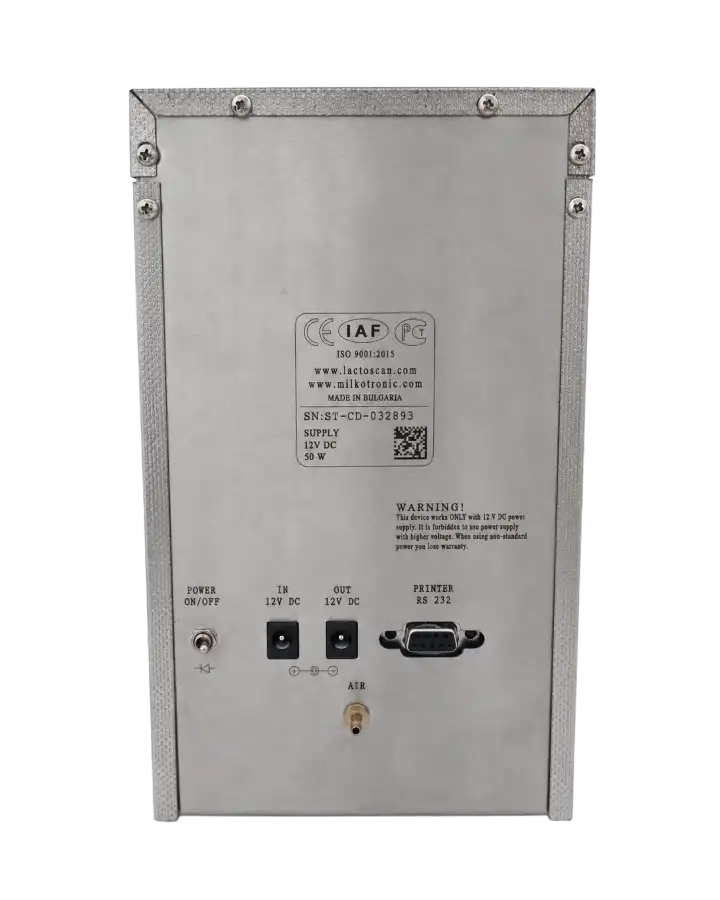

Data OutputRS232 Printer Support
Milk ApplicationCow Milk, Buffalo Milk, Mixed Milk
BodyStainless Steel Body
Optional ConfigurationsSide Stirrer; Battery-operated version (charger required); Thermal Printer

Applications

  • Dairy Collection Centers
  • Milk Testing Laboratories
  • Quality Control Use

Business Benefits

  • Compact and portable milk testing
  • Reliable daily testing for dairy operations
  • Easy-to-use interface and LCD display
  • Low-maintenance stainless steel construction
  • RS232 printer support for compatible receipt/report printing
  • Suitable for dairy collection centers and milk testing laboratories

Frequently Asked Questions

Is this Lactoscan milk analyzer original Made in Bulgaria? +

Yes We Have Original Made In Bulgaria Lactoscan Is Available But This Products Is Not Made In Bulgaria it is Assembled in india but all parts imported from bulgaria Lactoscan Milk Analyzer.

Which parameters does the Lactoscan milk analyzer measure? +

It measures FAT, SNF, Density, Protein, Lactose, Added Water, Milk Sample Temperature, Freezing Point and Salts.

What is the Lactoscan analysis time? +

The supplied catalogue lists approximately 30-second and approximately 20-second analysis configurations, depending on the selected model/configuration.

How much milk is required per test? +

The specified sample volume is approximately 20 ml.

Does the Lactoscan support a printer? +

Yes. The supplied configuration includes RS232 printer support, and a thermal printer is also listed as an optional configuration.

Which milk types are supported? +

The supplied technical data lists Cow Milk, Buffalo Milk and Mixed Milk.

What power supply does this Lactoscan use? +

The specified power supply is 12V DC with 50W power consumption.

How can I get the Lactoscan milk analyzer price in India? +

Use the Send Enquiry option to request the latest price, configuration and delivery details from KTPL Instruments.

Get Original Lactoscan Milk Analyzer Price & Quotation

Contact KTPL Instruments for the current Original Lactoscan Milk Analyzer configuration, quotation, accessories and delivery details in India.
